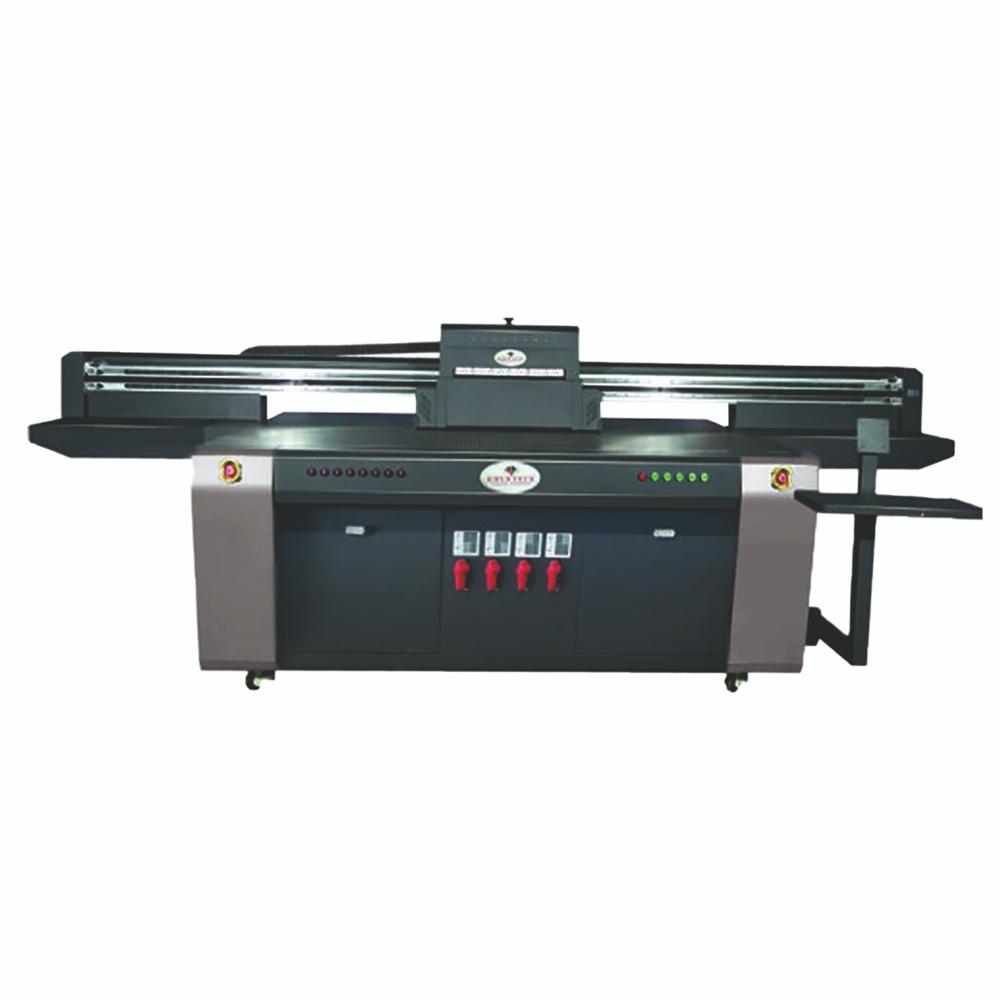

Wood Printer

Name: Wood Printer
Brand: GOLD TECH GRAPHICS PVT.LTD.
Price: 1350000.0 INR
Availability: InStock

1350000.0 INR/Number

Get a Price/Quote

Product Details:

Type Wood Printer
Material Metal Frame with Industrial Components
Capacity High-volume, Large Format Printing
Printing Speed 18-35 sqm/hr (Depends on Resolution)
Computerized Yes
Automatic Grade Fully Automatic
Plate Type Flatbed
Click to View more

Request to Call Back Send Inquiry

Product Details

Wood Printer Price And Quantity

Price 1350000.0 INR/Number
Minimum Order Quantity 1 Number

Wood Printer Product Specifications

Color Management CMYK + White/Gloss
Capacity High-volume, Large Format Printing
Type Wood Printer
Automatic Grade Fully Automatic
Working Temperature 18C - 30C
Power AC 220V / 50Hz
Size Large Format (Supports custom wood panel sizes)
Width Up to 2.5 meters
Computerized Yes
Control System Touchscreen and PC-Based Control
Printing Speed 18-35 sqm/hr (Depends on Resolution)
Ink Type UV-curable Ink
Material Metal Frame with Industrial Components
Plate Type Flatbed
Print Direction Bidirectional
Dimension (L*W*H) 4200mm x 2100mm x 1450mm
Weight (kg) 1100 kg

Number of Print Heads 2-6 Heads (Configurable)
Application Direct-to-Wood, MDF, Plywood, Veneer, and Furniture Panels Printing
Accepted File Format TIFF, JPEG, PDF, EPS, etc.
Vacuum Table High Suction, Adjustable Zones
Utility Requirements Compressed Air Supply Required
Software Compatibility Compatible with standard RIP software (Photoprint, Maintop, etc.)
UV Lamp Life 20,000 hours (approx.)
Operational Noise Level < 65 dB
Drying System Integrated UV LED Curing
Environmental Requirements Dust Free, Ventilated Area
Print Head Technology Industrial Ricoh/EPSON Printheads
Print Resolution Up to 1440 dpi
Media Thickness Supported Up to 100 mm
Safety Features Emergency Stop, Overload Protection
Interface USB 3.0 / Ethernet
